The OEM LFX alternator requires signal from the BCM in order to charge at proper voltage. Since the BCM addition adds drastic complication to the wiring system, it’s generally not installed and the alternator charges at a less than ideal voltage of around 12.9v.

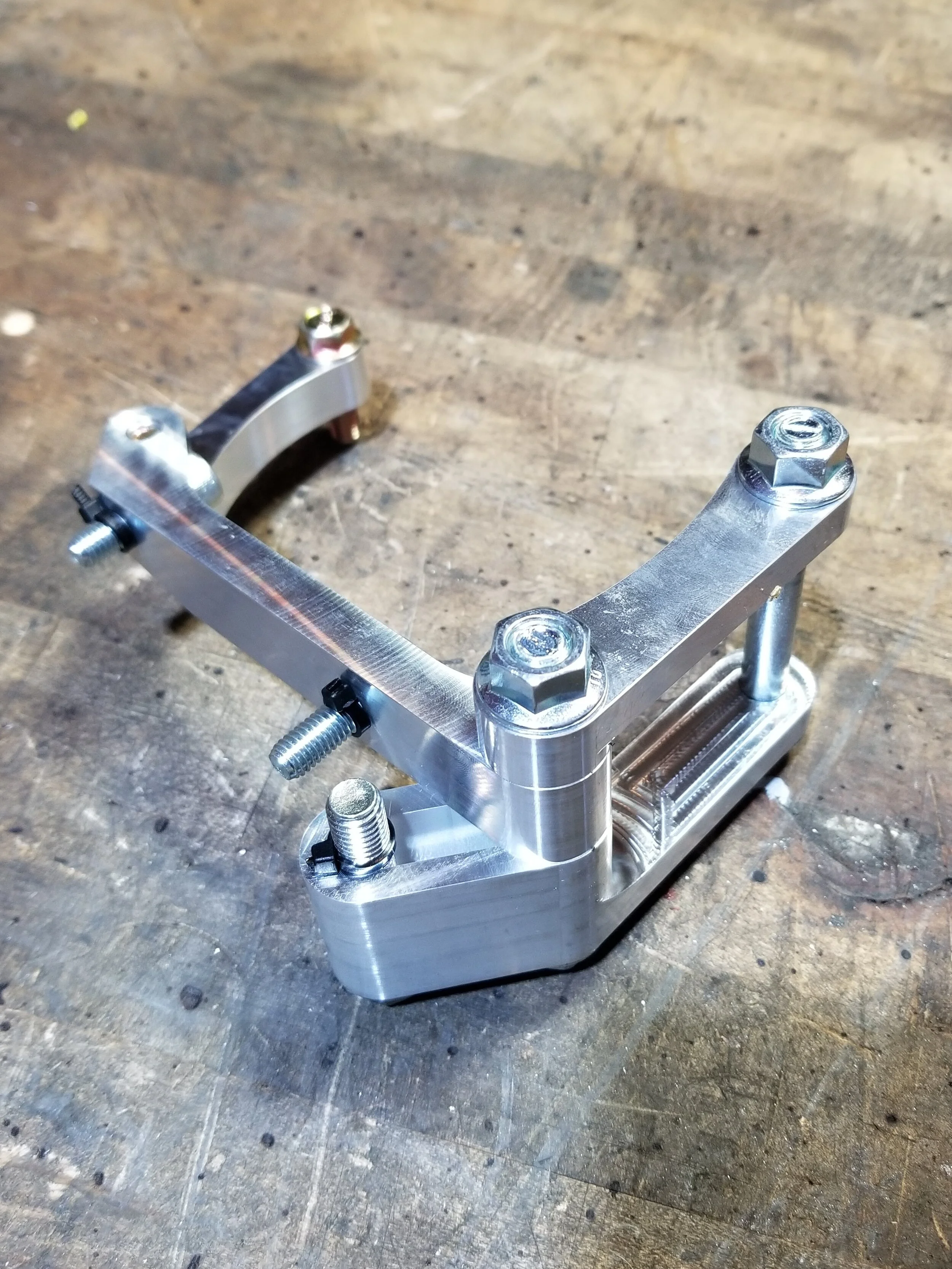

Keisler Automation has developed a solution for the low voltage charge by providing a 4-piece alternator bracket which locates an aftermarket 1-wire alternator that does not require any signals to charge at proper voltage.

• CNC machined from 6061-t651 aluminum.

• Total assembly weight of 10.9 lbs vs. OEM 16.2 lbs. 5.3 lb total weight savings

• All plated hardware is included.

• Locates the alternator in the same location as the camaro bracket, but the alternator resides approximately 1 inch closer to the center line of the engine for additional real estate in the engine bay.

• Most standard length serpentine belts can be reused.

• To be used in conjunction with the following alternator- Tuff Stuff Performance 79376G

https://www.tuffstuffperformance.com/i-31191045-alternator-120-amp-cs121-gm-style-mini-racer-1-wire-or-oem-hookup-12-volt-6-groove-serpentine-pulley-factory-cast-plus-79376g.html

• Alternator not included.
